Product Introduction

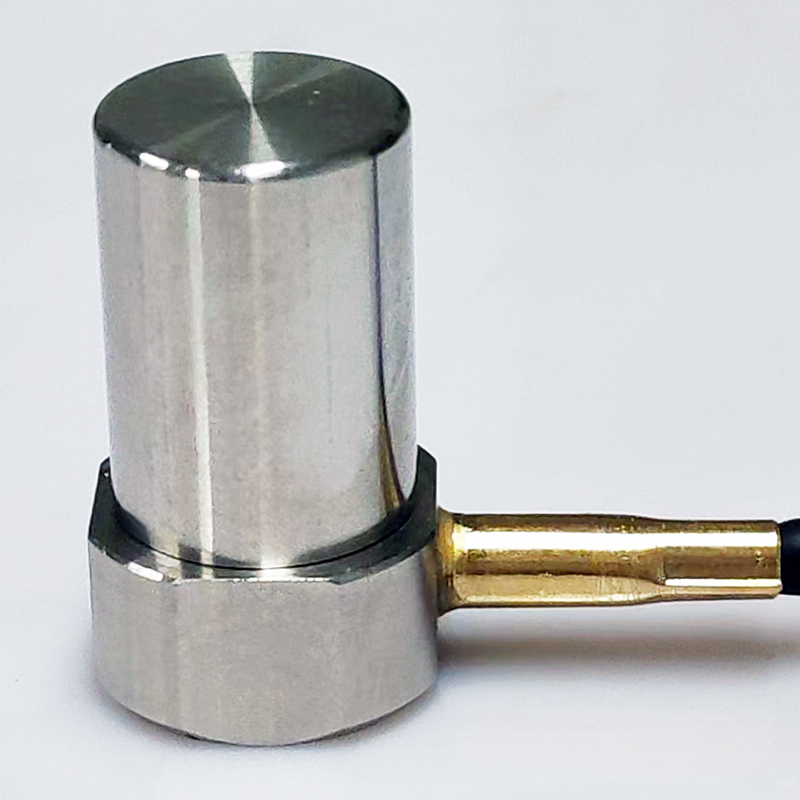

Accelerometer


Features:


Piezoelectric

Shear Mode

Wide frequency Range

Ground isolated

Low temperature sensitivity

Reliable for field use


Specifications:

Model





Parameter

L14

L14A

L14B

ICL-14

Sensitivity, 25oC (pC/ms-2)

3.5~5.2

3.5~5.2

3.5~5.2

100mV/g + 3%

Freq. Response,+5%(Hz)

2~5000

2~3000

2~5000

2 ~ 4000

Freq. Response,+10%(Hz)

2~10000

2~5000

2~10000

0.3 ~ 8000

Vibration limit(m/s2)

2000

2000

2000

Range 500

Transverse sensitivity, max

5% of axial

5% of axial

5% of axial

< 5%

Temperature Range (oC)

–20 to +100

–20 to +100

–20 to +100

–40 to +85

Sensitivity variation with Temperature

<0.01%/oC

<0.01%/oC

<0.01%/oC

N/A

Output Connector direction

Top

Top

Side

Top

Output Connector

M5

TNC

M5

TNC

Mounting

M5

M5

M5

M5

Sensing Element Design

Ceramic/Shear

Ceramic/Shear

Ceramic/Shear

Ceramic/Shear

Case material

Stainless Steel

  Stainless Steel

  Stainless Steel

Stainless Steel

Weight (g)

22

30

22

40

Power Current (mA, Vdc)

No

No

No

2mA,  12 - 24Vdc
