Laser Tacho Sensor  Laser Tacho Sensor

Product Introduction

Capable of sensing reflecting light signal from mark on rotating shaft to supply instrument with trigger or rotating speed signal.


Specifications:

    • Output signal options:

      5V(with 5Vdc power) or 24V(with 24Vdc power) TTL impulse

      4-20mA current with 24Vdc power


    • Indicator: LED, flash when there is an impulse

    • Operating Temperature Range: -20~70 Celsius degree

    • RPM range: 60 ~ 60000 r/minute

    • Laser distance to the shaft: 20~2000 mm,depending on reflecting condition.

    • Connector type: Sendig 301(plug supplied together)

    • Power source: 4.5~5.5Vdc, or 20~28Vdc, 28mA

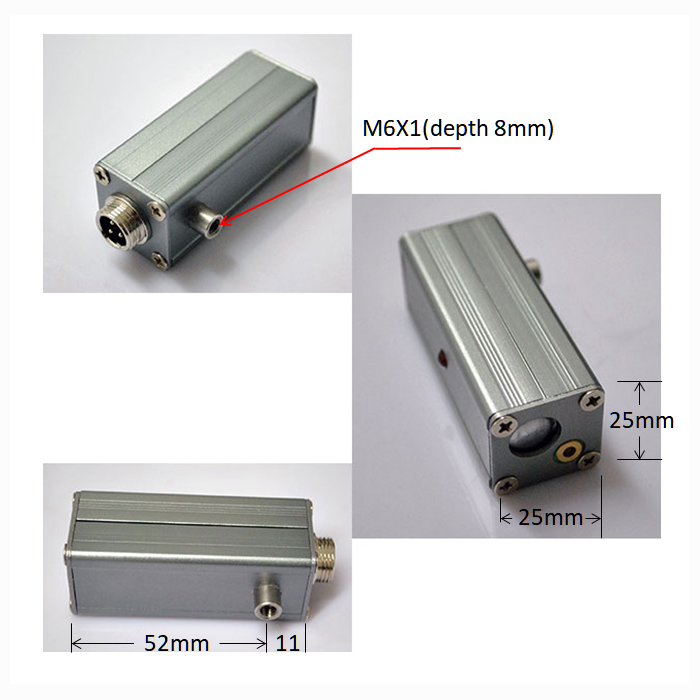

    • Dimension (mm): 65(Length) × 25(width) × 25(High)

    • Weight: 50g
